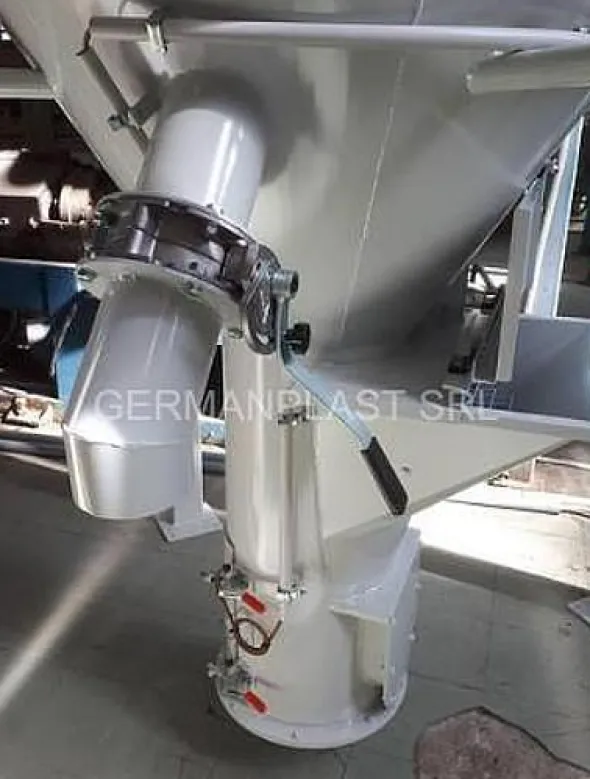

16.000 lt. VERTICAL MIXER

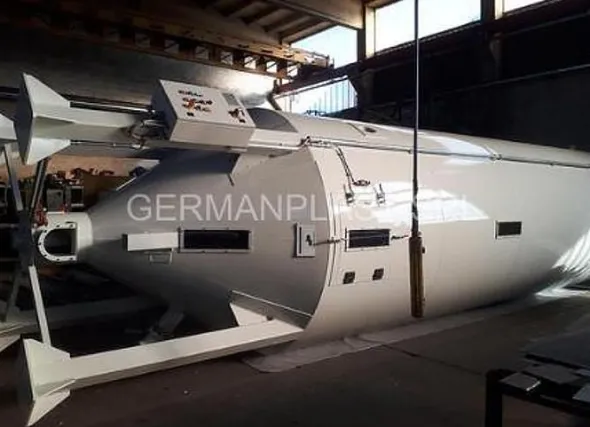

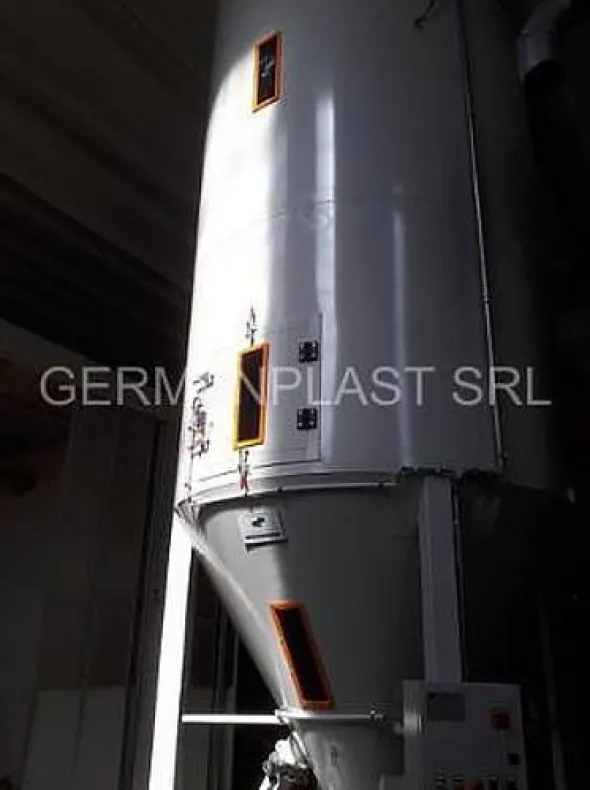

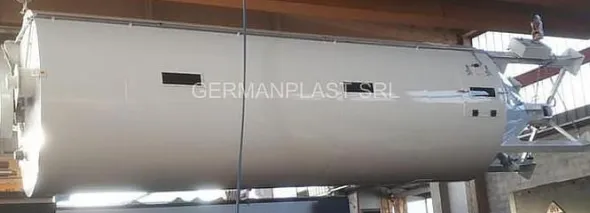

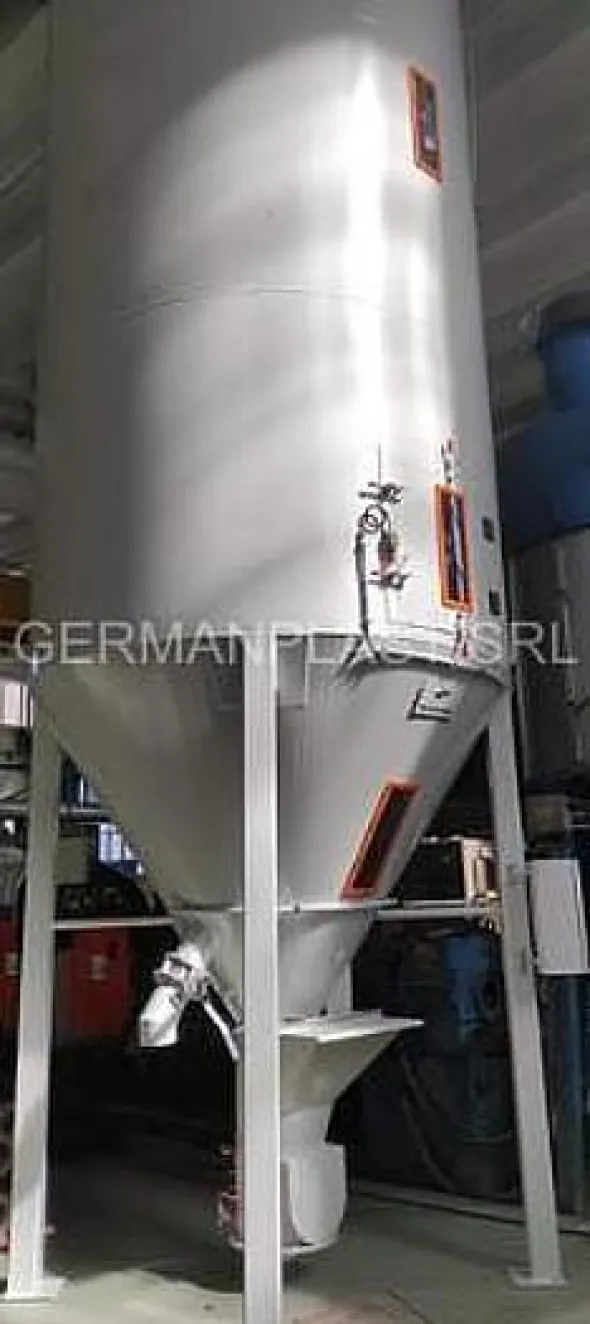

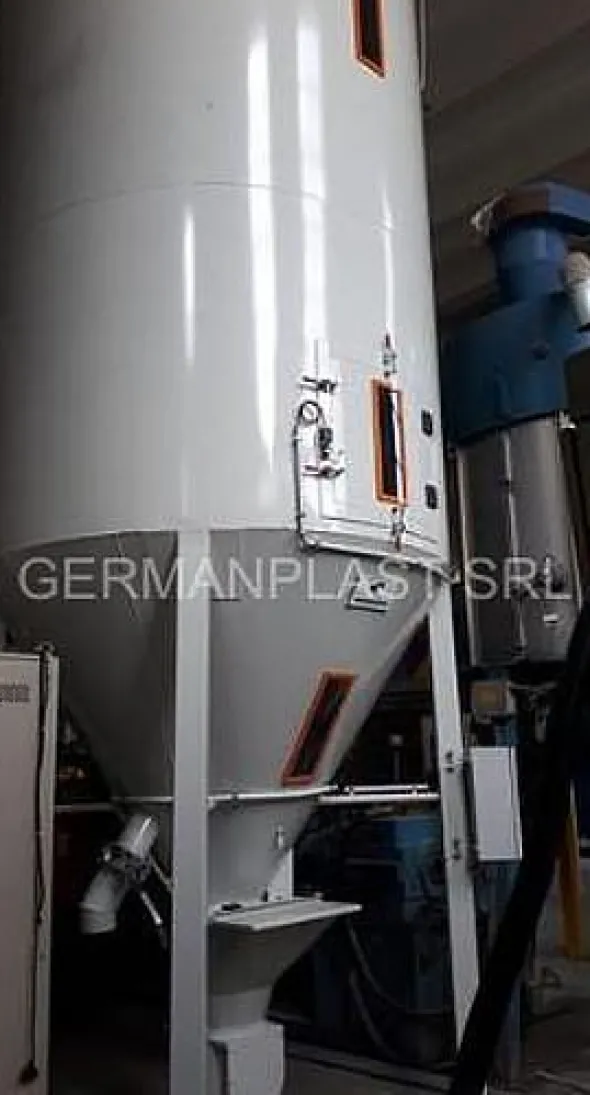

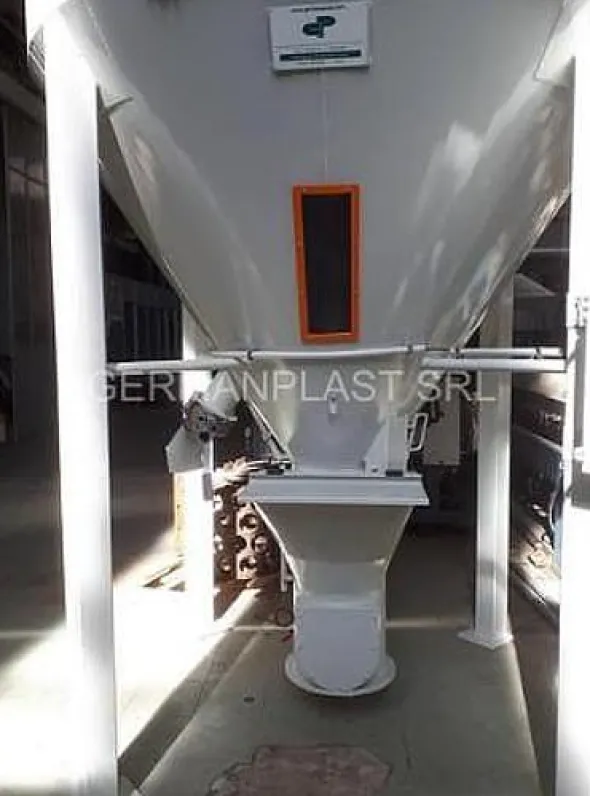

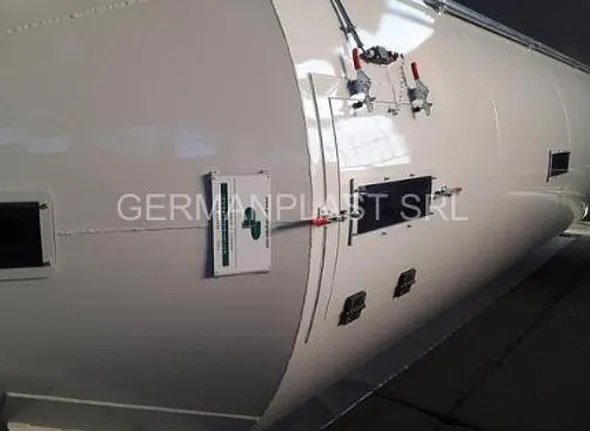

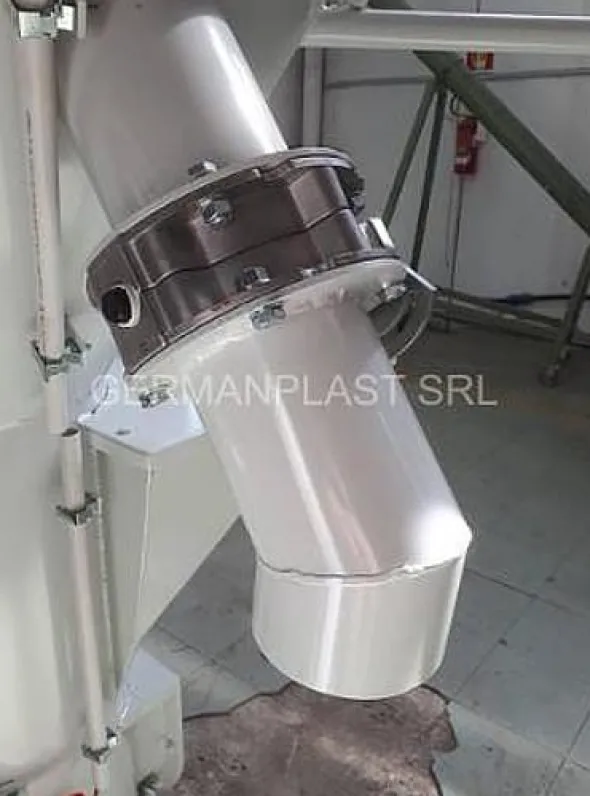

VERTICAL MIXER 16.000 lt. Total height approx 6.450 mm Loading from top with cyclone and dust sleeves collector Max diam.2.380 mm. Constructed in painted electro-welded carbon steel. Inner auger diam.350 mm. Sampling hopper with safety grid and shutter, mm.600×500 Pulley and belt transmission, protected by carters Inspection doors with safety limits Cleaning hinged door with on bottom of cone for complete discharging, with safety opening Side discharging pipe to big bag with valve paddle type max level indicator automatic greasing kit 11 kw electric motor Complete with control panel. Electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V CE compliance and instruction manual
