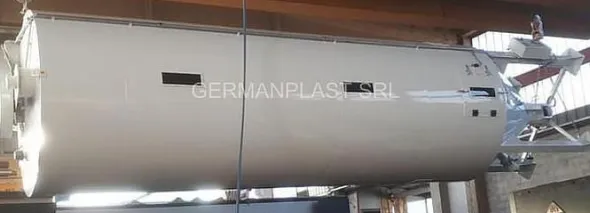

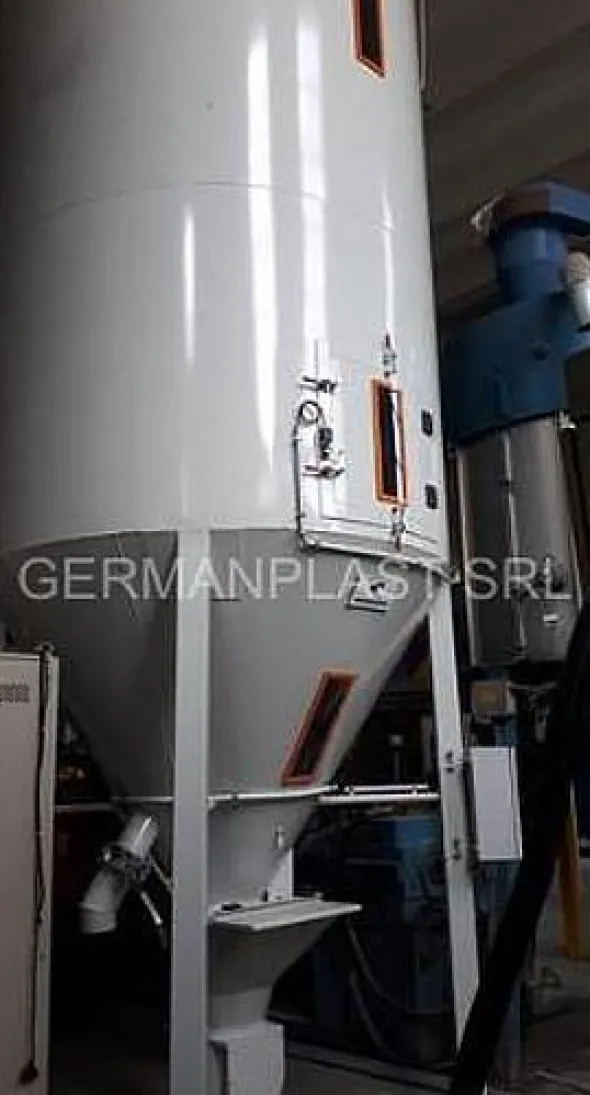

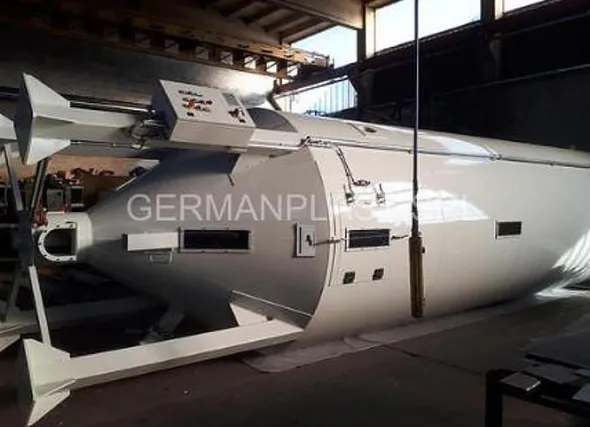

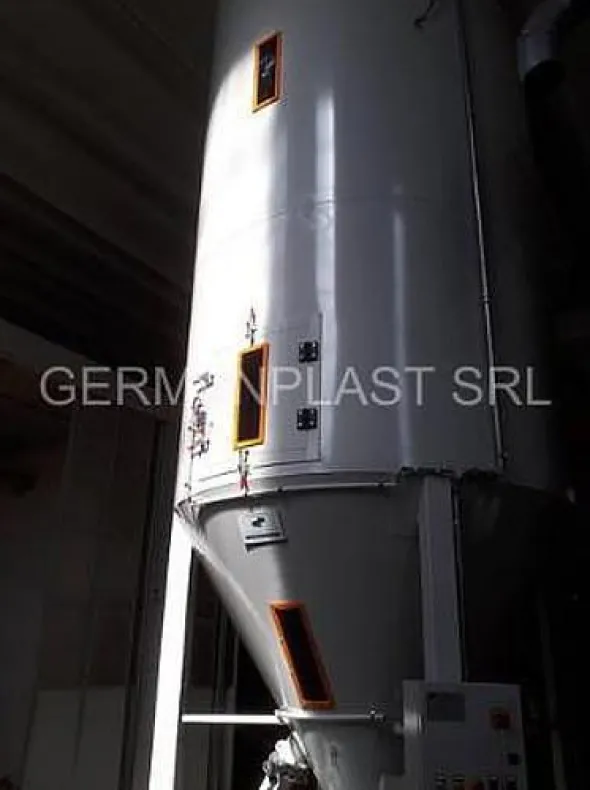

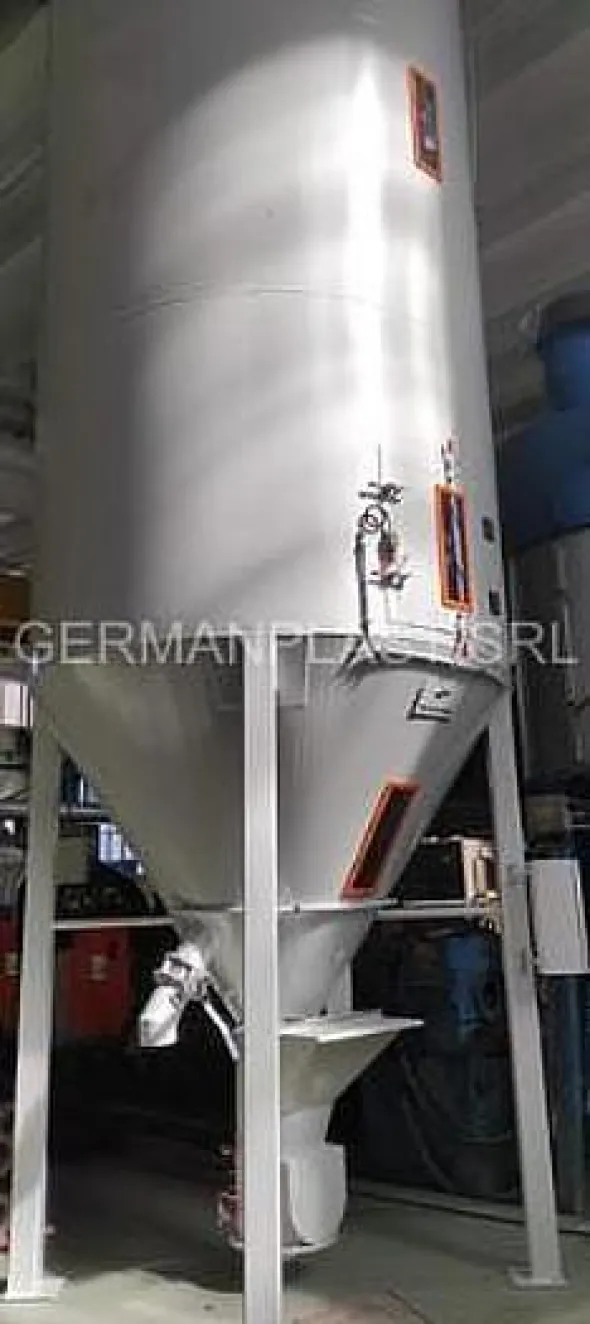

VERTICAL MIXER 10 m3

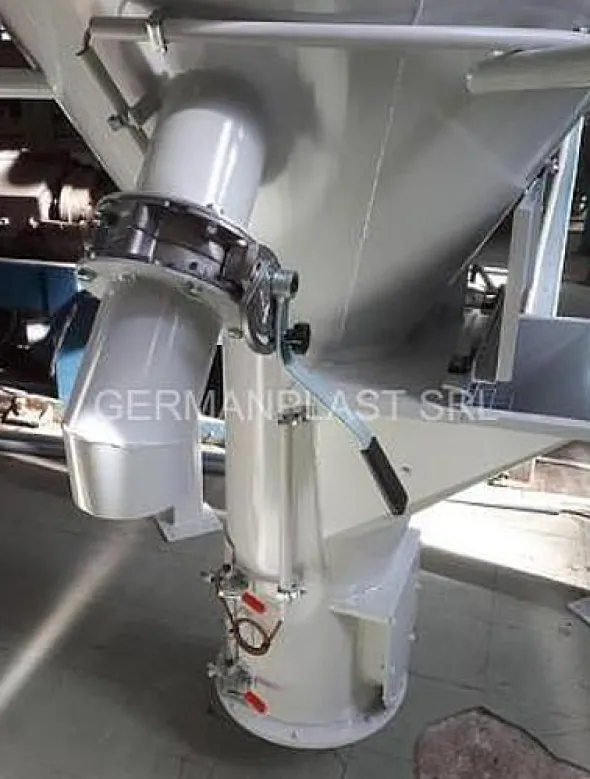

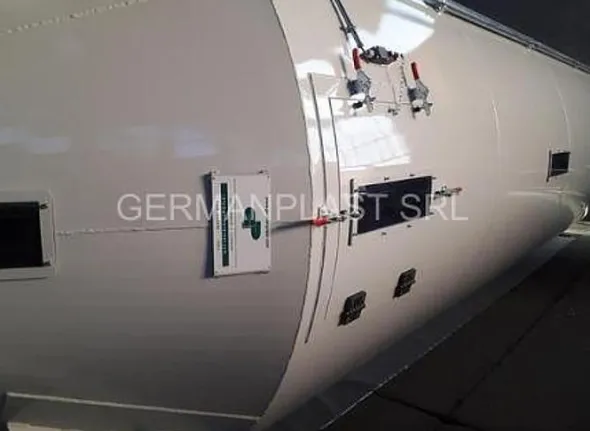

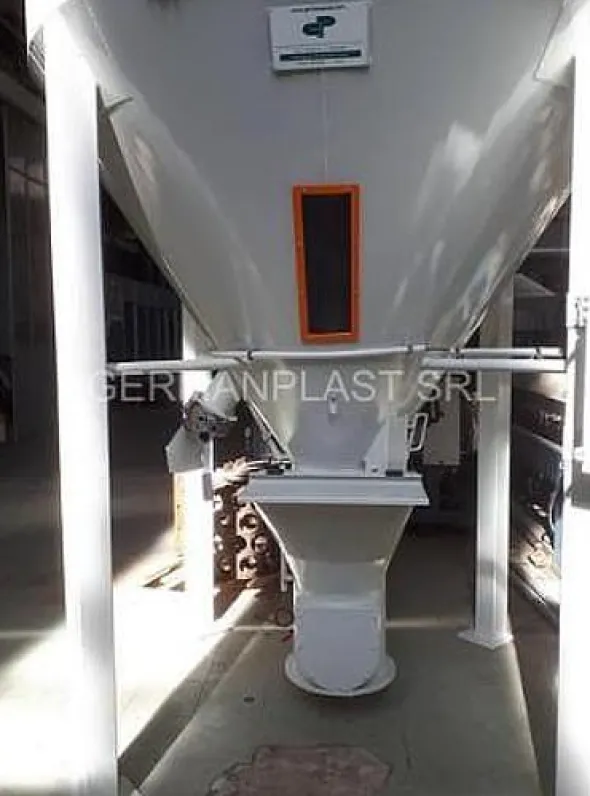

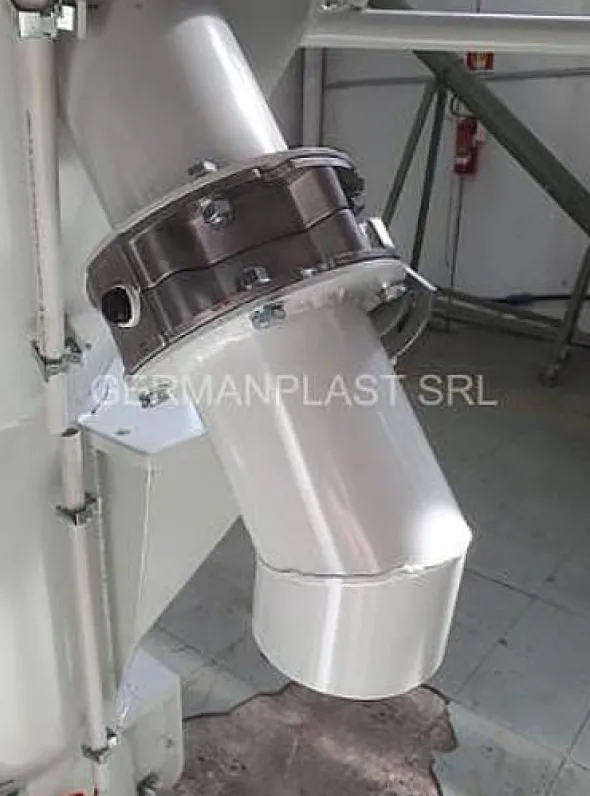

VERTICAL MIXER 10 m3 capacity total height approx 5.400 mm including transmission group max Ø 2.300 mm. constructed in painted electro-welded carbon steel. inner auger diam.350 mm. lower loading hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600×500 pulley and belt transmission, protected by carters inspection doors with safety limits cleaning hinged door on bottom of cone for complete discharging, with safety opening side discharging pipe to big bag with valve at 2.500 mm from ground max electric level indicator, paddle type automatic greasing kit 11 kw drive complete with control panel. electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V CE compliance and instruction manual
